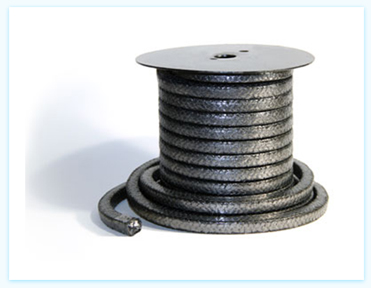

Pure Carbon Graphite Packing

Pure Carbon Graphite Packing

Pure Carbon an Interbraid multiservice carbon filament packing for pumps and valves. It is a special packing with low friction characteristics adapted easily and quickly into the equipment and requires only occasional gland adjustments.

Application :
Its heat sinking ability makes this packing an ideal seal in high speed rotary equipment, sealing against boiler feed water, steam, oils, aromatic aliphatic solvents, acids and alkalis except fluorine, oleum, fuming nitric acid and aqua regia.

Service Parameters

Temp.

ph

Pressure

Velocity

C

Range

Kg/cm2

Mtrs/sec

-240 to +600

0-14

200

20

Note : Available in Rope & Ring Form
